.NET Framework Architecture

The .NET Framework Architecture serves as the fundamental structure supporting the execution of all .NET applications. It is composed of four core components: the Common Language Runtime (CLR), Framework Class Library (FCL), supported programming languages, and diverse application models.

At its core, the CLR functions as the execution engine of .NET. It compiles source code, written in any .NET-supported language such as C#, VB.NET, or F#, into an intermediate representation known as MSIL (Microsoft Intermediate Language). This intermediate code is subsequently converted into native machine code at runtime through the Just-In-Time (JIT) Compiler. Beyond code execution, the CLR provides a managed runtime environment by handling critical services including memory allocation, garbage collection, type safety, security enforcement, and exception handling, thereby enhancing reliability and reducing development complexity.

Sitting above the CLR is the Framework Class Library (FCL), a comprehensive set of reusable classes, interfaces, and APIs provided by Microsoft. This library abstracts low-level programming complexities by offering built-in functionality for tasks such as file I/O, database access, XML manipulation, networking, data collections, and web development through ASP.NET. This enables developers to leverage existing components rather than implementing functionality from scratch, thereby increasing productivity and consistency.

The language layer empowers developers to choose their preferred programming language—commonly C#, VB.NET, or F#—while ensuring interoperability. Regardless of the chosen language, all source code is compiled into MSIL and executed by the CLR, enabling seamless cross-language integration within the same application ecosystem.

At the top of the architecture reside the application models, which determine the type of software being developed. These include Windows desktop applications (WinForms, WPF), web applications (ASP.NET Web Forms, MVC, Web API), console applications, and service-oriented applications (such as WCF and Windows Services). Each of these models leverages the CLR and FCL to deliver robust, scalable, and secure solutions.

Conceptually, the architecture can be visualized as a layered stack: the Operating System forms the foundation, the CLR acts as the execution engine, the FCL provides reusable building blocks, and the applications sit at the top, utilizing all lower layers to deliver functionality to end users.

Application Models (WinForms, WPF, ASP.NET, WCF, etc.)
Programming Languages (C#, VB.NET, F#)
Framework Class Library (FCL)
Common Language Runtime (CLR)
Operating System

Main Components of .NET

The .NET platform is composed of several fundamental components that work together to provide a seamless development and runtime experience.

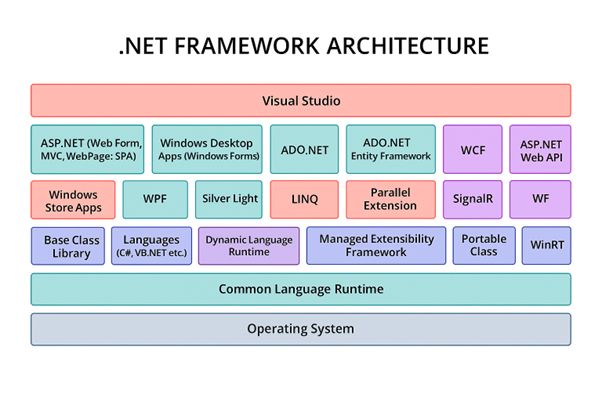

.NET Framework Architecture Diagram

Fig: .NET Framework Architecture (Conceptual Diagram)

Common Language Runtime (CLR)

The CLR is the core execution engine of the .NET Framework. It converts MSIL/IL into native code at runtime (via JIT), and provides a managed environment with services such as memory management, garbage collection, type safety, security, exception handling, and threading.

What the CLR Does

CLR stands for Common Language Runtime. It is responsible for converting MSIL (Microsoft Intermediate Language) to native code and then running the application. It manages threads, memory (garbage collection), type safety, exceptions, security, and performance optimizations. (A detailed CLR article can follow on a separate page.)

In the .NET Framework, Code Compiles Twice
  1. First compilation: The language compiler (e.g., CSC for C#, VBC for VB) compiles source code into MSIL/IL (managed intermediate code).
  2. Second compilation: At runtime, the CLR’s JIT compiler converts IL to native machine code for the current OS/CPU so it can be executed.
Note: The first compilation is relatively slower; JIT to native is fast.
How a .NET Application Is Compiled & Run
1Write code in C#, VB.NET, F#, etc.
2Language compiler (CSC/VBC) ➜ emits IL
3CLR loads IL ➜ invokes JIT
4JIT compiles IL ➜ native machine code
5OS executes native code under CLR services

How is a .NET Application Compiled and Run?

First, the developer has to write the code using any dot net-supported programming languages such as C#, VB, J#, etc. Then the respective language compiler will compile the source code and generate something called Microsoft Intermediate Language (MSIL) or Intermediate Language (IL) code. For example, if the programming language is C#, then the compiler is CSC and if the programming language is VB, then the compiler will be VBC. This Intermediate Language (IL) code is half-compiled code i.e. partially compiled code and cannot be executed directly by the Operating System. To execute this Microsoft Intermediate Language (MSIL) or Intermediate Language (IL) code on our machine, the .NET Framework provides something called Common Language Runtime (CLR) which takes the responsibility to execute our Microsoft Intermediate Language (MSIL) or Intermediate Language (IL) Code. The CLR takes the IL (Intermediate Language) code and gives it to something called the JIT (Just-in-Time) Compiler which is part of the CLR. The JIT compiler reads each and every line of the IL code and converts it to machine-specific instructions (i.e. into binary format) which will be executed by the underlying Operating System. The CLR in .NET Framework provides the runtime environment to execute the .NET Applications.

1. Writing Code

A developer writes code using any .NET-supported language such as C#, VB.NET, or F#.

2. First Compilation

The language compiler (CSC for C#, VBC for VB.NET) compiles the source code into MSIL (Microsoft Intermediate Language), also called IL. This IL is platform-independent and cannot be executed directly by the Operating System.

3. CLR Execution

The Common Language Runtime (CLR) loads the IL code and prepares it for execution. It provides services like memory management, garbage collection, type safety, and security.

4. Just-In-Time (JIT) Compilation

The CLR passes the IL to the JIT Compiler, which converts IL into native machine code. This machine code is specific to the underlying OS and CPU and is executed directly.

Summary: .NET code is compiled twice. First, source code ➜ IL (via language compiler). Then, IL ➜ native machine code (via JIT inside CLR). The CLR ensures applications run in a managed, secure, and optimized environment.
CLR Services
  • Security Manager
  • Memory Management & Garbage Collection
  • Exception Handling
  • Thread Management
  • Code Execution & Optimization
  • JIT Compiler
  • Common Language Specification (CLS)
  • Common Type System (CTS)

Thanks to the CLR, applications written in different .NET languages run in a consistent, managed environment. The JIT compiler converts IL to machine code at runtime for the target platform.

Security Manager in CLR

The Security Manager in the Common Language Runtime (CLR) was responsible for enforcing security policies on managed code in earlier versions of the .NET Framework (up to 3.5/4.0). It was deprecated in later .NET versions and completely removed in .NET Core and beyond.

Key Responsibilities
  • ✔ Code Access Security (CAS) enforcement
  • ✔ Managing evidence and permissions
  • ✔ Policy resolution at multiple levels
  • ✔ Runtime security checks (demand, assert, deny)
  • ✔ Sandboxing untrusted code
  • ✔ Verification and type-safety validation
APIs & Deprecation

Old APIs (Obsolete):

  • SecurityManager.IsGranted(permission)
  • SecurityManager.CheckExecutionRights
  • SecurityManager.LoadPolicyLevelFromFile(...)

❌ Deprecated from .NET 4.0 onwards in favor of OS-level isolation and new models.

Modern Approach (in .NET Core / .NET 5+)

Security is no longer managed by the CLR itself, but by the operating system and modern frameworks:

  • 🔒 OS-level sandboxing & containerization
  • 📂 File system & network ACLs
  • 👤 Identity & Role-Based Access Control (RBAC)
  • 🌐 JWT & Claims-based authentication (Web APIs)
  • 🖥 Windows User Account Control (UAC) & App containers
CLR Security Manager Diagram

Diagram: Transition from CAS-based security to modern containerization and claims-based models.

Memory Management in .NET (Garbage Collection)

Memory management in .NET is handled by the Common Language Runtime (CLR) through its Garbage Collector (GC). Unlike C or C++, developers don’t need to manually allocate or free memory, reducing memory leaks and pointer errors.

What is Memory Management?

Memory management is a core functionality of the .NET CLR, ensuring efficient memory usage by handling allocation and deallocation automatically. This prevents memory leaks, dangling pointers, and manual cleanup errors.

  • ✔ Objects are created efficiently
  • ✔ Memory is allocated and freed automatically
  • ✔ Prevents memory leaks and dangling pointers
How Memory is Managed in .NET

Memory is divided into two primary regions:

  • Stack: Stores value types & method calls (fast, LIFO allocation).
  • Heap: Stores reference types like objects and arrays, managed dynamically.

The Managed Heap is controlled by the CLR, where the GC operates, while the Unmanaged Heap is outside CLR control and requires manual cleanup.

Components of .NET Memory Model
  • 📦 Heap: Stores reference types (objects, arrays, etc.)
  • 📌 Stack: Stores value types and method call info
  • ⚙️ Managed Heap: Controlled by CLR; GC works here
  • 🛠 Unmanaged Heap: Used by native code; manual cleanup needed

How Garbage Collection Works

The Garbage Collector (GC) in .NET performs cleanup in several steps:

  1. Object Creation – New objects are allocated on the managed heap.
  2. GC Trigger – Triggered when memory is low, system idle, or GC.Collect() is called (not recommended).
  3. Mark Phase – Identifies live objects still in use.
  4. Sweep Phase – Frees memory from dead/unreachable objects.
  5. Compact Phase – (Optional) Moves live objects together to reduce fragmentation.
  6. Free Space Ready – Allocates cleared memory for new objects.
Generations in Garbage Collection
  • Generation 0: Short-lived objects (e.g., local variables). Collected frequently.
  • Generation 1: Objects surviving Gen 0 (e.g., caches).
  • Generation 2: Long-lived objects (e.g., static data, singletons). Collected less often.

This generational model improves performance by focusing on memory regions with most garbage.

The Large Object Heap (LOH)

Objects larger than 85,000 bytes are stored in the Large Object Heap. LOH is not compacted in every GC cycle (moving large objects is costly). Instead, it’s collected only during full Gen 2 garbage collections.

Finalization and the IDisposable Pattern

While the GC handles memory cleanup, unmanaged resources (e.g., file handles, database connections) need deterministic release:

  • Finalizers: Override Finalize() (non-deterministic, slow, should be avoided unless necessary).
  • IDisposable & Using Block: Implement Dispose() for manual cleanup. The using statement ensures timely release of resources.

Types of Garbage Collection in .NET

  • 💻 Workstation GC – Optimized for client apps, UI responsiveness.
  • 🌐 Server GC – Optimized for multi-threaded, high-throughput apps.
  • Background GC – Runs Gen 2 collections in the background, non-blocking.

These modes can be configured in application configuration files using <gcServer> and <gcConcurrent>.

Best Practices for Memory Management

  • ✅ Minimize unnecessary object creation
  • ✅ Prefer value types over reference types when possible
  • ✅ Use IDisposable & using for resource cleanup
  • ✅ Avoid finalizers unless required for unmanaged resources
  • ✅ Use object pooling for large objects
  • ✅ Regularly profile memory (Visual Studio Diagnostics, dotMemory, etc.)

Exception Handling in .NET

Exception handling allows developers to gracefully handle unexpected runtime errors without crashing the application. Instead of abrupt termination, .NET provides a structured way to detect, catch, and respond to errors, ensuring stable and reliable software.

What is an Exception?

An exception is an error that disrupts the normal flow of execution. Examples include:

  • ❌ Dividing a number by zero
  • ❌ Opening a file that doesn’t exist
  • ❌ Accessing a null object

In .NET, all exceptions are objects based on the System.Exception class. The CLR (Common Language Runtime) throws exceptions, and if not handled, the program crashes.

Why Do We Need Exception Handling?

Without exception handling, unexpected errors halt the application. Proper handling ensures:

  • ✅ Errors are caught and handled
  • ✅ Users see friendly messages instead of system crashes
  • ✅ Resources (files, memory, connections) are released safely
  • ✅ Application can continue running or shut down gracefully
  • ✅ Errors are logged for debugging

Basic Structure of Exception Handling

Exception handling in C# uses the try, catch, finally, and throw keywords:

▶ try Block
try
{
    int result = 10 / 0;
}
▶ catch Block
catch (DivideByZeroException ex)
{
    Console.WriteLine("Cannot divide by zero.");
}
▶ finally Block
finally
{
    Console.WriteLine("Cleanup done.");
}
▶ throw Statement
throw new FileNotFoundException("File not found");
Types of Exceptions

1. System Exceptions (built-in):

  • DivideByZeroException
  • NullReferenceException
  • IndexOutOfRangeException
  • FileNotFoundException

2. Custom Exceptions (user-defined):

public class InvalidAgeException : Exception
{
    public InvalidAgeException(string message) : base(message) {}
}
Best Practices
  • 🎯 Catch specific exceptions first
  • 🚫 Don’t swallow exceptions (always log or rethrow)
  • 🧹 Use finally for cleanup
  • ⚠️ Don’t use exceptions for flow control
  • 📝 Log exceptions using frameworks (Serilog, NLog)

Global Exception Handling

In ASP.NET Core or Windows apps, a global exception handler ensures unhandled exceptions don’t crash the app. Instead, errors are logged, and the app can show fallback behavior.

app.UseExceptionHandler("/Home/Error");

Thread Management in .NET

Threading enables multiple tasks to run concurrently within a single process. In .NET, multithreading improves responsiveness and efficiency, allowing background tasks (like file I/O or network calls) to run without blocking the main application thread.

What is a Thread?

A thread is the smallest unit of execution within a process. Every .NET app starts with a main thread, and additional threads can be created for background tasks. Each thread has:

  • 🧮 Its own stack, program counter, and local variables
  • 🤝 Shared memory space with other threads in the same process

Creating Threads in .NET

Threads can be created using multiple approaches:

  • Thread Class (Manual Threading)
Thread thread = new Thread(MyMethod);
thread.Start();
void MyMethod()
{
    Console.WriteLine("Running on separate thread.");
}
  • ThreadPool (Efficient Thread Reuse)
ThreadPool.QueueUserWorkItem(state => {
    Console.WriteLine("Thread from ThreadPool");
});
  • Task & async/await (Modern & Recommended)
await Task.Run(() => {
    Console.WriteLine("Task running asynchronously.");
});

Thread Lifecycle

A thread passes through several states during its lifetime:

  1. 🔵 Unstarted – Created but not started
  2. 🟢 Running – Actively executing
  3. ⏸️ WaitSleepJoin – Paused/waiting
  4. 🛑 Suspended – Deprecated state
  5. Aborted – Forcefully terminated (not recommended)
  6. Stopped – Finished execution
Thread Synchronization

When multiple threads access shared data, synchronization ensures consistency and prevents race conditions.

private static readonly object _lock = new object();
lock (_lock)
{
    // Only one thread can enter here at a time
}

Other Tools:

  • 🔐 Monitor
  • 🔐 Mutex
  • 🔐 Semaphore
  • 🔔 AutoResetEvent / ManualResetEvent
Common Issues in Threading
  • ⚠️ Race Conditions – unpredictable results from concurrent access
  • ⚠️ Deadlocks – threads waiting forever on each other
  • ⚠️ Starvation – some threads blocked indefinitely

Background vs Foreground Threads

  • 🌙 Background Threads – terminated when the main thread exits
  • 🌞 Foreground Threads – keep the app alive until they finish
Thread t = new Thread(SomeWork);
t.IsBackground = true;
t.Start();

Best Practices in Thread Management

  • ✅ Prefer Task & async/await over raw threads
  • ✅ Avoid blocking UI threads
  • ✅ Always synchronize access to shared resources
  • ✅ Release locks quickly to prevent deadlocks
  • ✅ Use cancellation tokens for graceful shutdown

JIT Compiler in .NET

The Just-In-Time (JIT) Compiler is a key component of the CLR (Common Language Runtime) that translates Intermediate Language (IL) into native machine code at runtime. This ensures platform independence, optimized execution, and efficient memory use.

Where Does JIT Fit in the .NET Execution Pipeline?

  1. 👨‍💻 Developer writes C# code
  2. ⚙️ C# Compiler (csc.exe) compiles it to IL + metadata → .dll or .exe
  3. 📥 CLR loads the IL at runtime
  4. 🚀 JIT compiler converts IL to native machine code (method-by-method)
  5. 💻 CPU executes the native code
1. Normal JIT
  • Compiles methods on demand
  • Efficient memory usage
  • ⚠️ Slower first-time execution
2. Pre-JIT (NGen)
  • Compiles entire assembly before execution
  • 🚀 Faster startup
  • 📦 Larger files, less flexible
ngen install MyApp.exe

⚠️ NGen deprecated in .NET Core+

3. Tiered JIT
  • ✅ Quick, low-optimization compile at startup
  • 🔥 Hot code recompiled with advanced optimizations
  • Default in .NET Core 3.0+

Benefits of JIT Compilation

  • 🌍 Cross-platform flexibility – IL runs anywhere with a JIT
  • ⚡ Optimized runtime performance – JIT adapts to environment
  • 🔒 Security – Type safety and memory checks before execution

JIT vs AOT (Ahead-of-Time)

Feature JIT (Just-in-Time) AOT (Ahead-of-Time)
Compilation Time ⏱️ Runtime ⚡ Before runtime
Performance Optimized during execution Faster startup, but fixed
Flexibility Platform independent IL Platform-specific native code
Examples .NET Framework, .NET Core .NET Native, Xamarin AOT, ReadyToRun

JIT Optimizations Performed

  • 📌 Method inlining – replaces method calls with the method body
  • 🧹 Dead code elimination – removes unused code blocks
  • 🔁 Loop unrolling – optimizes loop execution
  • 🧮 Constant folding – pre-computes constant expressions
  • 📊 Profile-guided optimization – hot paths recompiled efficiently

Common Language Specification (CLS) & Common Type System (CTS)

CLS and CTS are two core pillars of the .NET Language Interoperability Model. Together with the CLR, they ensure cross-language compatibility, type safety, and code reuse across the .NET ecosystem.

🔹 Common Language Specification (CLS)

The Common Language Specification (CLS) defines a set of rules that all .NET languages must follow to ensure interoperability. CLS is a subset of CTS designed to guarantee cross-language compatibility.

Why is CLS Important?
  • Ensures libraries in one .NET language can be used in another.
  • Avoids conflicts (e.g., uint in C# not supported in VB.NET).
  • Provides a "common ground" for multi-language development.
Concept Purpose
CLR Executes code
CTS Defines all common types
CLS Subset of CTS ensuring compatibility across languages
✅ CLS-Compliant Code
public class Calculator
{
    public int Add(int a, int b)
    {
        return a + b;
    }
}
❌ Not CLS-Compliant
public class MyMath
{
    public uint Multiply(uint a, uint b)
    {
        return a * b;
    }
}
CLSCompliant Attribute: Mark assemblies with [assembly: CLSCompliant(true)] to enforce compliance. Non-compliant members will raise compiler warnings.
Common CLS Rules
  • Public members must use CLS-compliant types (avoid sbyte, uint, ulong).
  • Names cannot differ only by case (e.g., Add vs add).
  • No overloads differing only by return type.
  • Exceptions must derive from System.Exception.
  • Expose only CLS-compliant attributes publicly.

🔹 Common Type System (CTS)

The Common Type System (CTS) defines how types are declared, used, and managed in .NET. It ensures type safety and enables cross-language interoperability by standardizing data types.

CTS Type Categories
📌 Value Types
  • Stored in stack, contain actual data.
  • Efficient for small data.
  • Examples: int, bool, char, struct, enum
📌 Reference Types
  • Stored in heap, contain references.
  • Support object sharing & reuse.
  • Examples: class, string, object, array, interface, delegate
Predefined CTS Types
CTS Type C# Alias VB.NET Alias
System.Int32intInteger
System.StringstringString
System.ObjectobjectObject
System.BooleanboolBoolean
System.CharcharChar
Why CTS is Important?
  • 🤝 Interoperability: Code in C# can work in VB.NET seamlessly.
  • 🛡️ Type Safety: Prevents mismatches & ensures compile-time checks.
  • ♻️ Code Sharing: Libraries are reusable across languages.
  • 📏 Standardization: Enforces consistent data type definitions.
CTS vs CLS vs CLR
Component Role
CTS Defines all supported .NET types
CLS Subset of CTS ensuring cross-language compatibility
CLR Executes code & manages memory

👉 Every CLS-compliant type is CTS-compliant, but not every CTS type is CLS-compliant (e.g., uint).

.NET Class Library (Base Class Library - BCL)

The Base Class Library (BCL) is the foundation of the .NET ecosystem. It provides pre-built classes, interfaces, and types that act as building blocks for all .NET applications.

📖 What is BCL?

The Base Class Library (BCL) is a core set of classes, interfaces, and value types provided by Microsoft. It includes essential features required to build applications:

  • ✅ Data structures, Strings, Enums
  • ✅ File I/O & Reflection
  • ✅ Networking & Threading
  • ✅ Security & Cryptography
  • ✅ Database access (ADO.NET)
  • ✅ XML / JSON handling
  • ✅ Exception handling & Collections
  • ✅ Regular Expressions
Think of the BCL as the toolbox that every .NET application depends on.

🔹 Where is BCL Used?

  • 🖥️ Console, Web, Desktop, Mobile apps → Core types like System.String, System.IO.File
  • 🌐 Web APIs / Services → HTTP, serialization, authentication
  • 📱 ASP.NET, WPF, Xamarin, MAUI → All extend BCL
  • 📦 Libraries & DLLs → Built on consistent BCL types

📂 Core Namespaces in BCL

  • System – Object, String, DateTime
  • System.IO – File & Stream handling
  • System.Collections – Lists, Dictionaries
  • System.Net – Networking & HTTP
  • System.Threading – Multithreading, Tasks
  • System.Data – ADO.NET (Databases)
  • System.Xml / System.Text.Json – Data parsing
  • System.Reflection – Metadata, assemblies
✅ Advantages of BCL
  • Reusable & Cross-language support
  • Well-documented & tested by Microsoft
  • Saves development time
  • Extendable & Object-oriented
  • Built-in Security & Reliability
⚠️ Limitations of BCL
  • Heavy for small apps
  • Black-box (cannot modify internals)
  • Steep learning curve (many namespaces)
  • Version dependency issues

📦 Dynamic Link Library (DLL)

A DLL is a reusable code library in .NET. Unlike EXEs, DLLs cannot run independently because they don’t have a Main() method. They are used to share logic across multiple projects.

👉 Example: MathLibrary.dll for reusable math operations.

🛠️ Assemblies

Assemblies are the building blocks of .NET apps. They contain compiled code, metadata, and resources.

  • ✔ Enable version control
  • ✔ Promote code reuse
  • ✔ Support deployment & security

👉 Example: CalculatorApp.exe (Assembly) + MathLibrary.dll

💻 Implementation Examples

// 1. File Operations
using System.IO;
File.WriteAllText("example.txt", "Hello World!");

// 2. Collections
using System.Collections.Generic;
List<string> names = new List<string> { "Megha", "Reddy" };

// 3. Networking
using System.Net.Http;
HttpClient client = new HttpClient();
var result = await client.GetStringAsync("https://api.example.com");

// 4. JSON Serialization
using System.Text.Json;
string json = JsonSerializer.Serialize(new { Name = "Megha", Age = 1 });

// 5. Multithreading
using System.Threading.Tasks;
await Task.Run(() => Console.WriteLine("Running in background"));


🔍 Difference Between BCL, FCL, and .NET Class Library

Term Stands For Description
BCLBase Class LibraryCore foundational classes
FCLFramework Class LibraryBCL + Additional libraries (ASP.NET, ADO.NET, WPF, etc.)
.NET Class Library-All Microsoft-provided libraries

👉 .NET Class Library ⊇ FCL ⊇ BCL

📌 Real-Time Use Cases

Use Case BCL Feature
Uploading files in Web AppSystem.IO.Stream
Reading user dataSystem.Data.SqlClient
Sending EmailsSystem.Net.Mail
Scheduling background tasksSystem.Threading.Tasks
Parsing XML or JSON APIsSystem.Xml, System.Text.Json

🌐 Languages Supported by .NET

.NET is language-independent and supports multiple high-level programming languages. All languages compile into a common Intermediate Language (IL), which is executed by the CLR, ensuring cross-language compatibility and code reuse.

⚡ C# (C-Sharp)

The most widely used language in .NET, ideal for building:

  • ✅ Modern Web Applications & APIs
  • ✅ Desktop & Mobile Apps
  • ✅ Cloud Services

👉 Object-oriented, with syntax similar to Java & C++.

📘 VB.NET (Visual Basic)

A beginner-friendly language, mostly used in:

  • ✅ Legacy desktop applications
  • ✅ Quick prototyping & scripting

👉 Simplified syntax, easier for newcomers.

🔢 F# (Functional Programming)

Functional-first language best suited for:

  • ✅ Scientific applications
  • ✅ Financial modeling
  • ✅ Data-intensive tasks

👉 Supports immutability & concise syntax.

⚙️ C++/CLI

Used for low-level programming and interoperability with native C++ code.

  • ✅ System-level programming
  • ✅ Legacy interop support

👉 Ideal when bridging managed and unmanaged code.

🔄 Dynamic Languages (via DLR)

.NET supports scripting and automation languages through the Dynamic Language Runtime (DLR), such as:

  • ⚡ PowerShell – Scripting & automation
  • 🐍 IronPython – Python implementation for .NET
  • 💎 IronRuby – Ruby implementation for .NET

🛠️ Language Interoperability in .NET

All supported languages work together seamlessly due to:

  • CLR – Common Language Runtime
  • CTS – Common Type System
  • CLS – Common Language Specification
👉 This ensures components written in different languages can be reused across applications.

🚀 Summary

.NET is a language-independent platform. Developers can choose the best language for each task — from C# (modern apps), VB.NET (legacy/simple apps), F# (functional & scientific tasks), to C++/CLI (low-level interop). All compile into IL, executed by the CLR, making mixed-language programming possible.

📝 Common Language Specification (CLS)

The Common Language Specification (CLS) is a set of rules defined by Microsoft to ensure language interoperability across .NET. It helps different .NET languages like C#, VB.NET, and F# work together smoothly.

⚡ Why CLS?

Not all features of one .NET language are available in another. CLS defines a common subset of rules that every .NET language understands.

Example: C# supports uint, but VB.NET does not. CLS prevents such conflicts by enforcing only shared types.

📘 Purpose of CLS

  • ✅ Ensures code portability across all .NET languages
  • ✅ Helps developers write reusable class libraries (DLLs)
  • ✅ Promotes cross-language collaboration

👉 Essential when creating components for multi-language projects.

🛠️ Making Code CLS-Compliant

To ensure your code follows CLS rules, avoid using non-standard types and features that are not supported across all .NET languages.

Example: Mark your assembly as CLS-compliant:

[assembly: CLSCompliant(true)]

👉 This helps guarantee your code is safe for use across any .NET language.

🌍 Benefits of CLS

  • 🔹 Ensures interoperability across .NET languages
  • 🔹 Simplifies library sharing across projects
  • 🔹 Encourages writing clean, standardized code
👉 CLS helps developers write clean, sharable, and compatible code across the .NET platform.

🚀 Summary

CLS is a set of rules for language interoperability in .NET. It ensures that code written in one language (like C#) can be reused safely in others (like VB.NET or F#). By following CLS rules, developers create portable, reusable, and error-free .NET libraries.

🌐 ASP.NET and Web Technologies

ASP.NET is a web development framework by Microsoft for building dynamic websites, web applications, and web services. It runs on the .NET platform, enabling developers to write server-side code in languages like C# and VB.NET.

🖥️ Web Forms

Drag-and-drop style development, easy for beginners.

📐 MVC

Model-View-Controller architecture for structured, testable apps.

⚡ ASP.NET Core

Modern, cross-platform, high-performance web framework.

🛠️ Web Technologies with ASP.NET

  • 📄 HTML/CSS – Structure & design of web pages
  • JavaScript – Client-side interactivity
  • 🔄 AJAX – Server communication without refresh
  • 📱 Bootstrap – Mobile-friendly, responsive UI
  • jQuery – Simplifies DOM & scripting
👉 ASP.NET + Web technologies = Power to build secure, fast, and interactive web applications.

📊 Entity Framework (EF)

Entity Framework (EF) is Microsoft’s Object-Relational Mapper (ORM) that simplifies database operations using .NET objects instead of SQL.

✨ Features

  • ✅ Interact with databases via .NET objects
  • ✅ No need to write complex SQL queries
  • ✅ Supports LINQ queries

⚡ EF Core

A lightweight, cross-platform version of EF designed for .NET Core.

⚙️ .NET SDK and CLI

The .NET SDK provides everything needed to build applications, including compilers, libraries, and the CLI (Command-Line Interface).

🛠️ CLI Features

  • 📦 Create new projects
  • 🔧 Build & test applications
  • 🚀 Publish apps across Windows, macOS, Linux

👉 CLI makes .NET cross-platform and developer-friendly.

📦 NuGet Package Manager

NuGet is the official package manager for .NET, helping developers share, reuse, and manage dependencies in applications.

🔹 Key Benefits

  • ✅ Easy distribution & consumption of code packages
  • ✅ Manages dependencies automatically
  • ✅ Integrates open-source libraries into .NET apps
👉 NuGet accelerates development with modularity and reusability.

💻 Visual Studio and IDE Support

Visual Studio is the most popular IDE for .NET development, offering rich tools for coding, debugging, and deployment.

⚡ Visual Studio Features

  • ✅ Code editing & debugging
  • ✅ IntelliSense & code refactoring
  • ✅ GUI design tools
  • ✅ Git integration

🌍 Other IDEs

  • 📝 Visual Studio Code – Lightweight & cross-platform
  • 🚀 JetBrains Rider – Advanced IDE for .NET developers

👉 All IDEs support .NET development effectively.

📜 Evolution of .NET (2002 – 2023)

From .NET Framework 1.0 in 2002 to .NET 8 LTS in 2023, the .NET platform has evolved into a unified, cross-platform, high-performance ecosystem.

2002

.NET Framework 1.0

  • 🚀 First release
  • 🖥️ Windows-only
  • ⚙️ Included CLR & BCL
  • 🌐 ASP.NET support
2005

.NET Framework 2.0

  • 📦 Generics, Nullable types
  • 🧩 Partial classes
  • 📊 Better data handling
2006

.NET Framework 3.0

  • 🎨 WPF (UI)
  • 🔌 WCF (Services)
  • 🔄 WF (Workflow)
  • 🆔 CardSpace (Identity)
2007

.NET Framework 3.5

  • 🔍 LINQ
  • ⚡ ASP.NET AJAX
  • 📦 VS 2008 Integration
2010

.NET Framework 4.0

  • 🔀 Parallel Programming (TPL)
  • ⚙️ Improved memory & security
2012–2019

.NET Framework 4.5 – 4.8

  • ⏳ Async / Await
  • 📝 Roslyn Compiler
  • 🔧 Continuous improvements
  • 🏁 Final version: 4.8
❌ Limitations: Windows-only, not cross-platform, heavy for cloud/mobile.
2020

.NET 5

  • 🔄 Unified .NET Framework + .NET Core + Xamarin
  • 🌍 True cross-platform support
2021

.NET 6 (LTS)

  • ⚡ Hot Reload
  • 📦 Minimal APIs
  • 🖥️ Unified app model
  • 🚀 Huge performance boost
2022

.NET 7

  • 🌐 Blazor & MAUI improvements
  • ☁️ Cloud-native support
  • ⚙️ Modern APIs
2023

.NET 8 (LTS)

  • 🚀 Native AOT (Ahead-of-Time compilation)
  • 🤖 AI & Cloud improvements
  • ⚡ Highest performance yet

✅ Current LTS release (supported until 2026)

🌍 Cross-Platform Support in .NET

Modern .NET (Core → 5, 6, 7, 8) is cross-platform, meaning apps can run on Windows, Linux, macOS, Mobile (Android/iOS), and IoT devices.

⚙️ How It Works

  • ✅ Traditional .NET Framework was Windows-only.
  • ✅ From .NET Core (2016) onward → Cross-platform.
  • ✅ Single codebase runs on Windows, Linux, macOS.

🚀 Benefits

  • 📦 Write Once, Run Anywhere
  • 💰 Cost-effective – no separate apps per OS
  • 🌐 Open-source + global community support
  • 📱 Build for Mobile & Cloud with same tools
  • 🛠️ Works with VS, VS Code, Rider

📦 Strong vs Weak Assemblies in .NET

In .NET, an Assembly (EXE or DLL) is the compiled output of your project. Assemblies can be Weak (simple, local use) or Strong (signed, reusable, secure).

⚠️ Weak Assembly

  • 📂 No special identity
  • 🛠️ Used in local projects
  • 🔄 Can be replaced easily
  • 🚫 Cannot go into GAC
  • 🔓 Lower security
👉 Best for small/private projects.

✅ Strong Assembly

  • 🔑 Digitally signed with Strong Name Tool (sn.exe)
  • 📛 Unique identity → Name, Version, Culture, Public Key Token
  • 📦 Can be stored in Global Assembly Cache (GAC)
  • 🛡️ Secure & reusable across multiple apps
  • 📈 Ensures version control & reliability
👉 Best for enterprise & shared projects.
